This project has base on the K3NG Arduino keyer open-source firmware adding many features and flexibility.
The firmware is open source code provided by K3NG so you can customize it to fit your needs.
The Keyer is suitable as a standalone keyer or for keying the radio via the USB port from a connected computer and your favoured contest logging software or for daily operation.
Features:
-
- CW speed adjustable from 1 to 99 WPM
- Programming and interfacing via USB port (“command line interface”)
- Logging and Contest Program Interfacing via K1EL Winkey 1.0 and 2.0 interface protocol emulation
- Optional PTT outputs with configurable lead, tail, and hang times
- Up to 12 memories with macros
- Serial numbers
- CW keyboard (via a terminal server program like Putty or the Arduino Serial program)
- Speed potentiometer (optional – speed also adjustable with commands)
- QRSS and HSCW
- Beacon / Fox mode
- Iambic A and B
- Straight key support
- Ultimatic mode
- Bug mode
- CMOS Super Keyer Iambic B Timing
- Paddle reverse

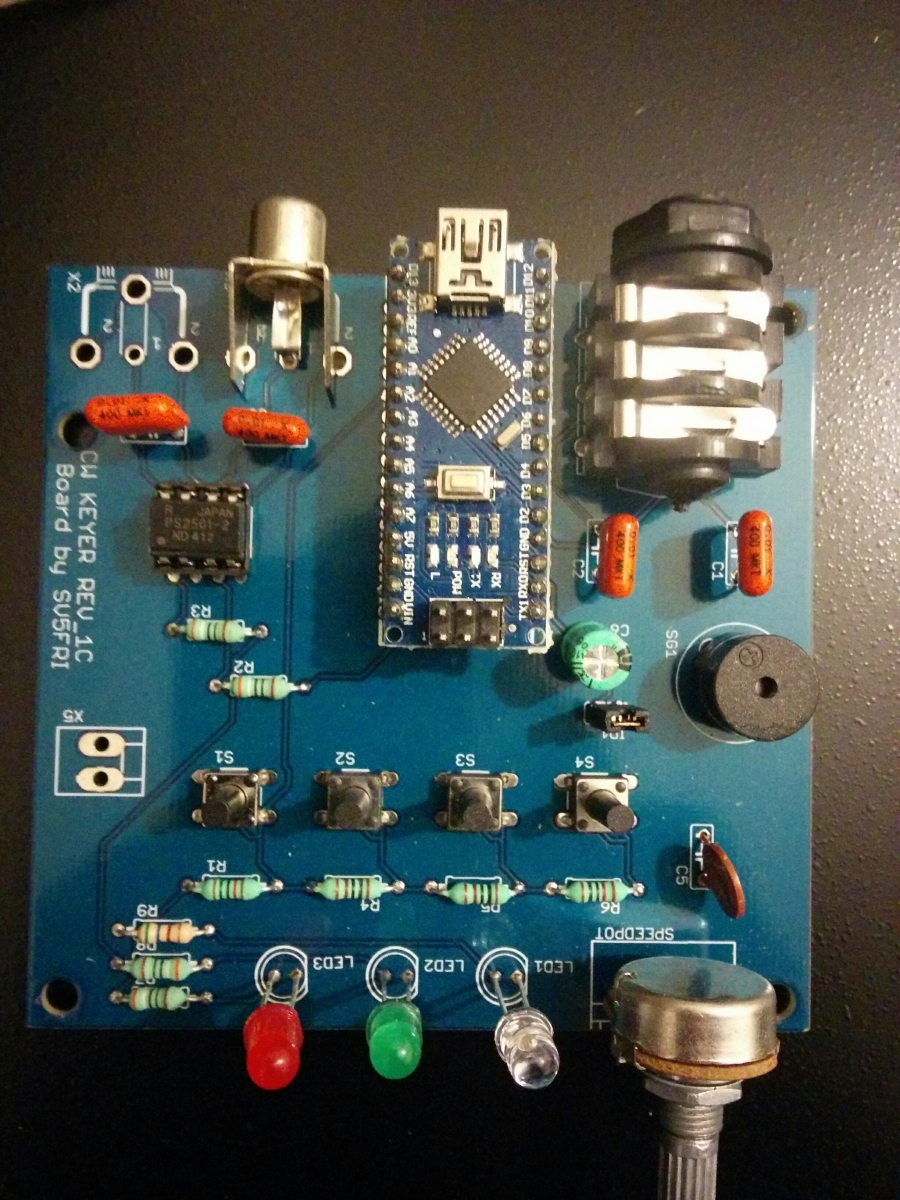

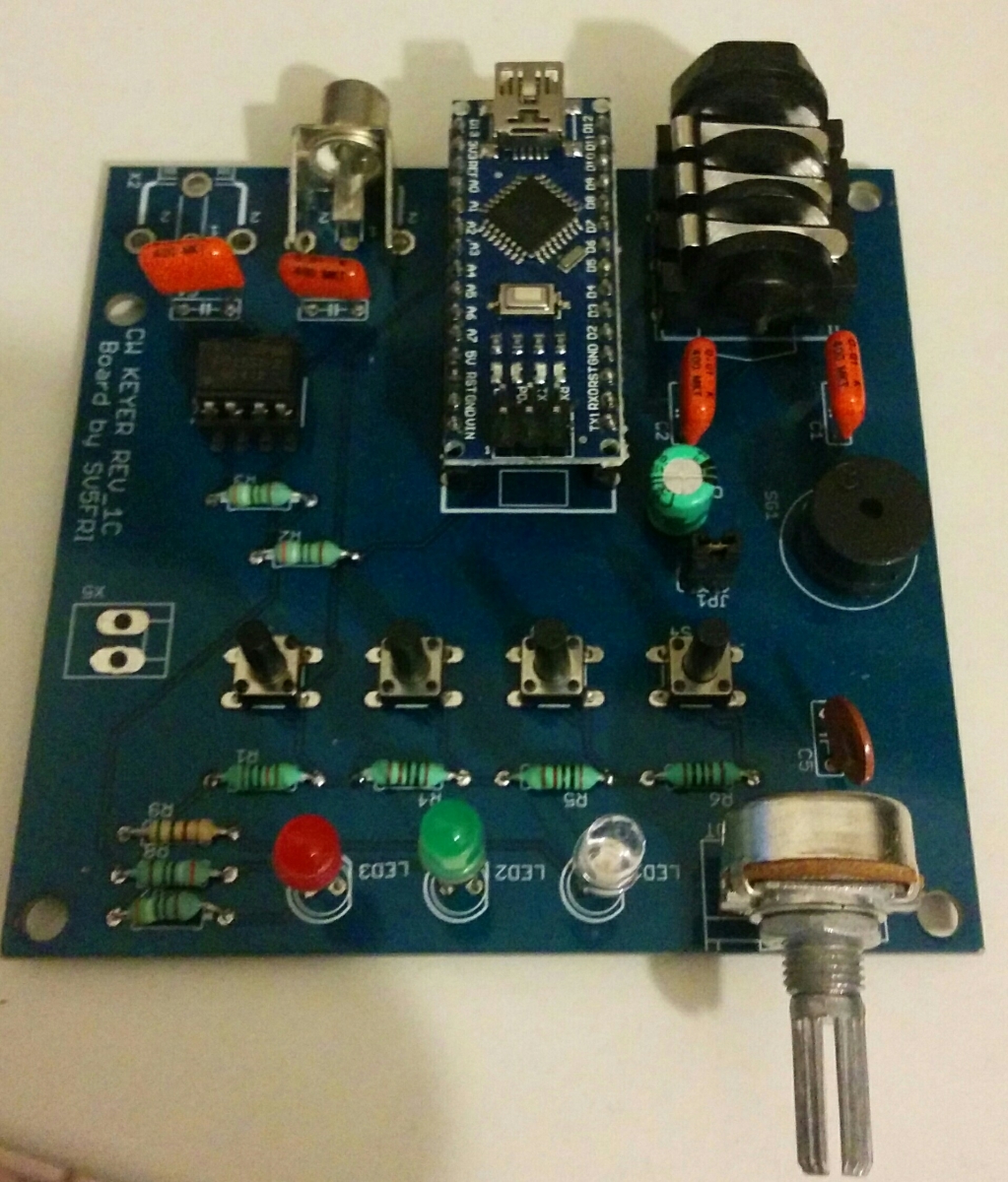

The keyer features one radio port with a optically isolated PTT keying line as well as the CW keying line.
The paddle is connected with a standard 6.3mm Stereo Jack compatible with most modern radios.
Via the USB connector of the Arduino Nano plug-in board the keyer can communicate with a PC.
The chip drivers(FTDI FT232R, CH340) will provide virtual serial COM port on the computer which is then available to external loggers for communicating with the keyer.

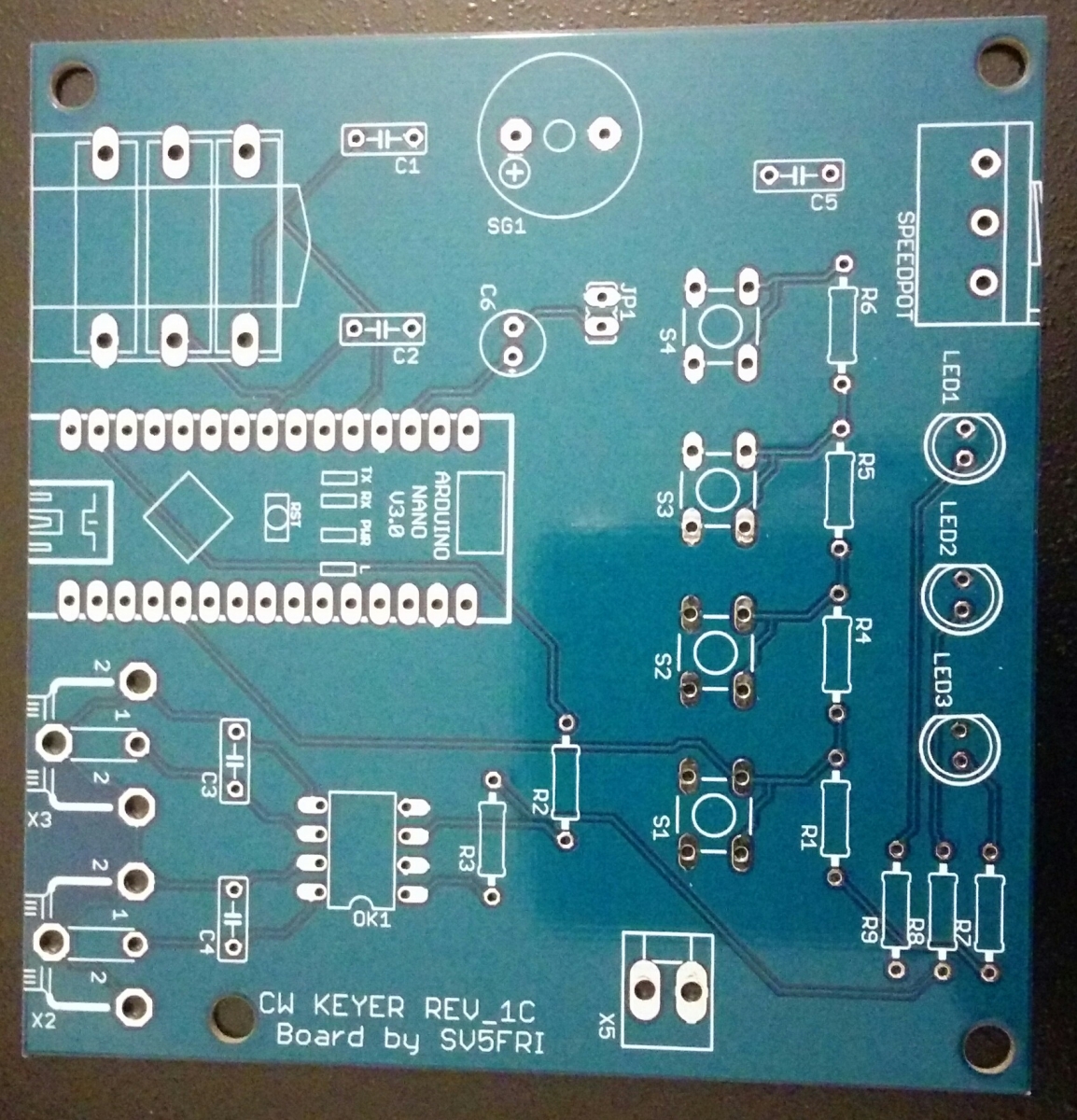

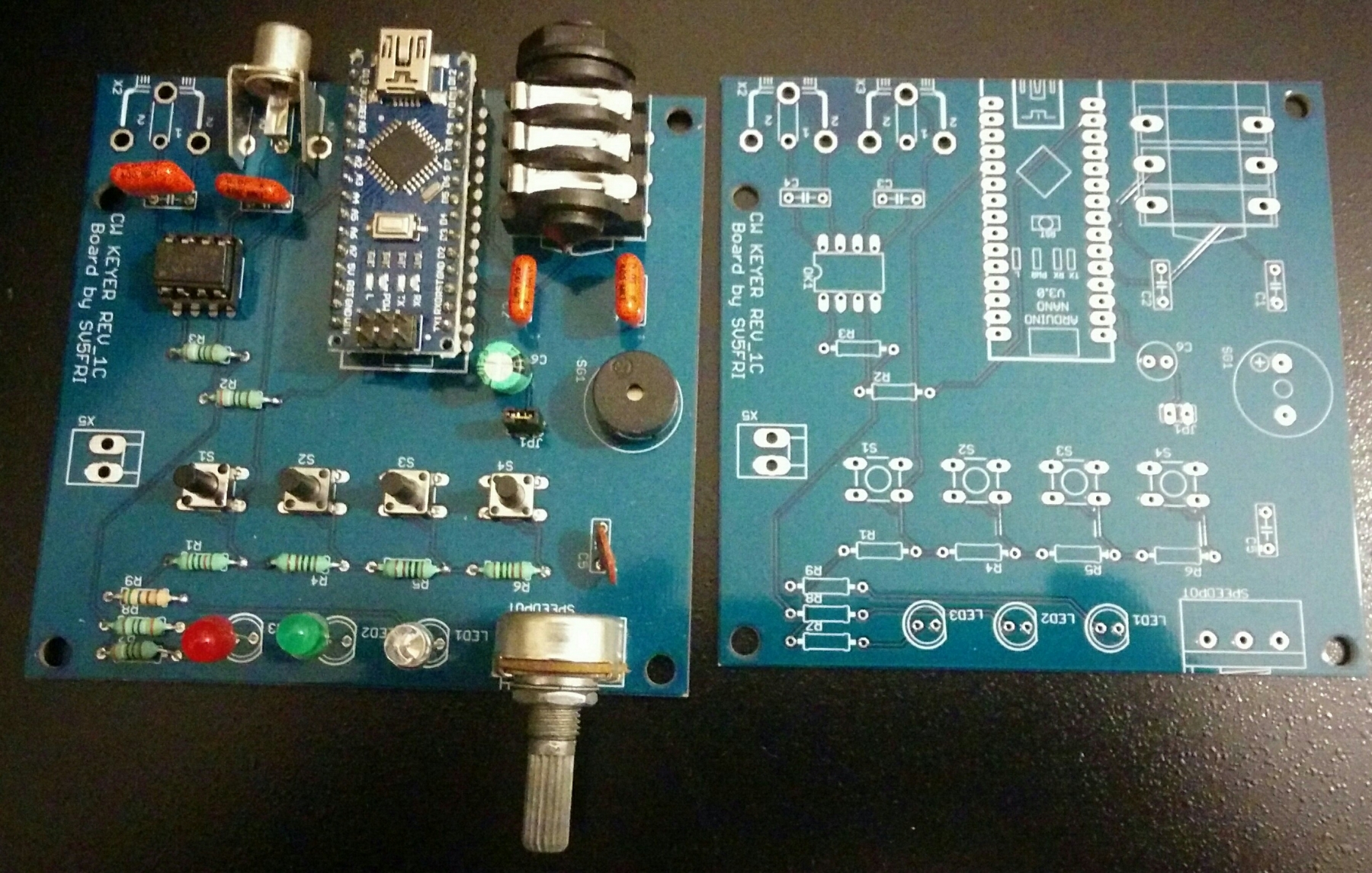

Here you can download the schematic, parts list, and Gerber files for my CW Keyer PCB. Click here to download
Source code is located on GitHub . Click on the green button Clone or download and next click on the Download Zip button on the lower right to get all the code in a ZIP file.
The CW keyer supported almost all LogBook applications (Log4Om, Logger32, N1MM, etc) where have supported the K1EL winkey protocol 1.0 & 2.0
Userfull links
Loading ...
Where can I buy the kit from?
Dear Miki
I don’t have kit for sale but I have some spare pcb and I can send you.
Please contact with your contacts to my email.
73,
Yiannis
Dear Ioannis,
The PCB arrived in the mail in order. Thank you very much.
Stay health.
73, de Miki OM6MS
Hi Yiannis, its no possible to send data over your contact form (e-mail don’t accepts) 73 de Sven
Hello de kd5sbp
By any chance do you still have any pcbs
Left if so I would like to get one
I’m considering building one to work with my alinco dx8srt
Mailing address is good on qrz.com by callsign
Steve
Hi,
Do you still have a spare PCB for sale or trade for other hamradio things.
I wish you all the very best.
Nelu
Dear Nelu,
Please send me your contact to my e-mail for send you a PCB.
Yiannis, SV5FRI
Thank you Yiannis!
A very good afternoon
Where can I buy the kit from?
73
Dear George,
I don’t sell kit. but I can check if have Pcb piece available to send to you.
Please provide you contact details to my email.
73, SV5FRI
CW – Keyer is just in progress (work) … 😉
Hi
I Just built the keyer today to your circuit, thanks for that, I have tried to load it into a nano and have done so , the keyer part works fine and I can adjust the speed, but when I press the command button all I get is one low freq bleep, and that doesn’t seem to work every time, there is a pull up of 10k ohms to the switch but it doesn’t enter into the menus,
maybe there is another option I haven’t enabled or so??
do you have a preconfigured file (even a hex file would be ok) that I could load to test the circuit out
hope you can help.
Thanks Paul 2E0AQU
Dear Paul,
I have send you on your email my version where I used.
Αt your disposal
73 Yiannis de SV5FRI
Hi Yiannis
Thanks for the code you sent me, i have had a few health issues of late and put this project on one side but now i am ok again i have picked it back up. i have got it working great as a keyer BUT i have problems with N1MM using it as a winkeyer. it works some times but not always, it loses TX focus often and other problems like that, have you found any issues with using this as a winkeyer? i am using a clone Nano with CH240 chip (Drivers installed fine)
Hope 2020 is a good year for you.
best 73
Paul
Hi Yannis.
Do you still have a pcb of your K3NG keyer available?
73s Christiaan PA3FUN
Sorry I dont have any stock. Due to with the Covid-19 I can not send my order to print new PCB’s.
I believe soon I will can make new orders.
Hi Yannis.
If you order printed circuit boards, can I get one? Of course I will pay the shipping costs. Let me know ( on this e-mail) when this happens
Thank.73!
Deay Sergei,
In the next days I will make order.
When i haveth pcb i will inform you.
73
Hi Yiannis.
I made a WinKey to your scheme. All functions work, for example, it works well from the CWTYPE program, but there is no sound when the key is connected. I am using a single key KENT. Perhaps you need to make some changes to the sketch?
Thank. Best Regards 73!
Hi Sergey,
I have check my sketch with iambic and single key and work fine. The cw keyer recognized the key when connected at power up.
please check from firmware if you have enable the tone.
Please check and inform me.
73, Yiannis de SV5FRI
Hi Yannis.
Is it possible to simultaneously connect to a computer and connect to a power source, for example 9 volts, to connector X5?
Regards! Sergey UR4IOR 73!
Hi Sergey,
No that is risk to damage the arduino module.
73, Yiannis de SV5FRI
Hi Yannis.
Do you still have a pcb of your K3NG keyer available?
73s Domenico IZ8XTV
Dear Domenico,
This moment I dont have any pcb stock. I believe next month to order.
73 Yiannis, SV5FRI
Thanks 73 my friend
Hi Yannis,
Were you able to get any PCBs in recently? I would love to try to make this keyer.
73
Cierra KN4LIA
Hello Cierra,
I have received some pieces from the PCB CW keyer.
73 de Yiannis, SV5FRI
Hello Yiannis,
do you have still a pcb aviable ?
I would like to get one.
Dear Wolfgang,
Please send me via email your contact details.
73 Yiannis, SV5FRI
Dear Yiannis,
please send me 2 pcs of PCB. Also send me your account number to cover the costs.
Thank you very much.
73 Miki, OM6MS
My address:
Mikulas Sostronek
Jablonova 518/2
03104 Liptovsky Mikulas
Slovak Republic
Hello Yiannis,
do you have still a pcb aviable ?
I would like to get two.
73 de Miky OM6MS
Dear Yannis, My name is Emil ZS1XB / ZS6EGB. I would like to receive also onof your CW boards.
My email is ebohme@gmail.com. I live close to Cape Town, Regards, Emil
Dear Emil,
Please send me with personal email your contact details
73, de yiannis, SV5FRI
hi, can you please tell me what capacitors did you used for the project? i need what type is it
Hello,
C1 10n Ceramic or tantalum
C2 10n Ceramic or tantalum
C3 10n Ceramic or tantalum
C4 10n Ceramic or tantalum
C5 4.7n Ceramic or tantalum
C6 10uf Polarized
73, de Yiannis, SV5FRI
Hi Yiannis, do you have a PCB for the keyer for me?
vy 73 de tom, DL1ASA
hi yiannis
i am a beginner in cw
can you tell me if you have any pcb spare for me
I cannot wait building it – many thanks
mik
Dear Mik,
Unfortunately I don’t have others PCB.
In my site I have all appropriate files you need to order or make PCB.
73 de Yiannis, SV5FRI
Hi Yiannis.
Can I get a PCB or the files to make it?
I do not want to get rid of my old TS830S and the AccuKeyer I built when young is gone…
I’ve found you because juste heard you on 10M
73 de Juan, LU1AW
Dear Juan,
I don’t have stock of PCB’s
You can download the files to create the PCB for the following link.
https://www.sv5fri.eu/wordpress/wp-content/uploads/2016/12/cw_keyer_pcb.rar
73 de Yiannis, SV5FRI
Hi Yiannis,
could you please send me your Arduino sketch to get it running? Thank you in advance
best regards and 73
Patrick , OE8ACT
Of course.
Sorry for late to answer but iam in vacation.
I will send you very soon
